Name: Panasonic PT-JX200GB Black Projector
Brand: Panasonic
SKU: PT-JX200GB-Black
Price: 1.00 EUR
Availability: OutOfStock

Pre-Order

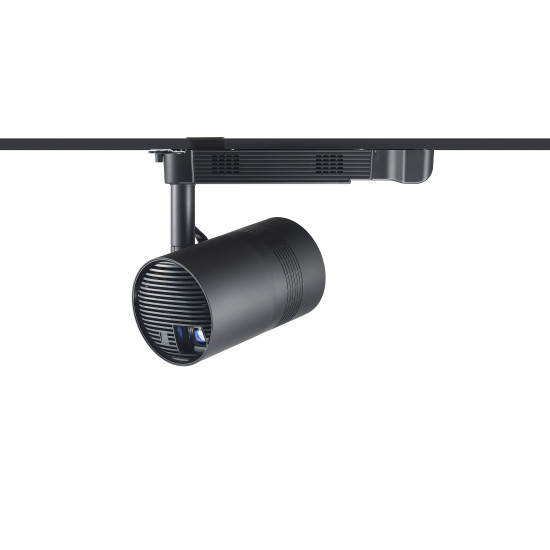

Panasonic PT-JX200GB Black Projector

Description

2000 Lumens, 4:3 XGA, 1.5-2.9:1 Throw Ratio - Laser Lamp-Free Wireless SpacePlayer - Track Mounted

1-Chip DLP Laser, 2000 lumens, XGA, lighting projection. Brilliant hybrid spotlight & projector creates a new world of possibilities for Retail and Exhibition.

Key Features

Projection with a laser light source (20,000 hours with limited maintenance)
Spotlight-shaped to fit any space requiring high-level design
Automatic image/movie playing via SD memory card, Wi-Fi from a PC / tablet or using an HDMI connection
Adjustable structure to deliver light in wide direction

Power Supply	PT-JX200HBU/JX200HBW : AC 120V 50/60Hz PT-JX200GBE/JX200GWE/JX200GBD/JX200GWD : AC 100 - 240V 50/60Hz
Power Consumption	PT-JX200HBU/JX200HBW : 240W(2.3A) PT-JX200GBE/JX200GWE/JX200GBD/JX200GWD : 240W(2.7 - 1.1A) Standby: 0.4W[HBU/HWU] 0.5W[GBE/GWE/GBD/GWD] in Eco mode Standby: 0.5W[HBU/HWU] 0.7W[GBE/GWE/GBD/GWD] in Network mode, Standby: 12 W in Normal mode (when fan is stopped ) PT- JX200HBU/JX200HWU (Standby(in Eco mode):0.4W, Standby(in Network mode):0.5W) PT- JX200GBE/JX200GWE/JX200GBD/JX200GWD (Standby(in Eco mode):0.5W, Standby(in Network mode):0.7W)
DLP® Chip	0.55 (For screen aspect ratio of 4:3) DLP® chip x1, DLP® method 786,432 pixels (equivalent to XGA)
Lens	Powered zoom (1.3 - 2.9:1), Powered focusing method F=2.0 - 2.7, f=15.2 mm - 32.7 mm
Light Source	Laser Diode (Laser class: Class 1) Class 3R for North America . Luminance life for set: 20,000 hours at half luminance
Screen Size	0.76- 5.08 m (30 -200 inches) (4:3 aspect ratio)
Brightness*1	2,000 lumens
Center-to-Corner Uniformity*1	80%
Contrast*1	1,000:1 (Full white / Full black)
Scanning Frequency (HDMI Input)	525p(480i): fH 15.7kHz; fV 59.9Hz; fclk 27.0MHz 625p(576i): fH 15.6kHz; fV 50.0Hz; fclk 27.0MHz 525p(480p): fH 31.5kHz; fV 59.9Hz; fclk 27.0MHz 625p(576p): fH 31.3kHz; fV 50.0Hz; fclk 27.0MHz 750(720)/60p: fH 45.0KHz; fV 60.0Hz; fclk 74.3MHz 750(720)/50p: fH 37.5KHz; fV 50.0Hz; fclk 74.3MHz 1125(1080)/60i; fH 33.8kHz; fV 60.0Hz; fclk 74.3MHz 1125(1080)/50i; fH 33.8kHz; fV 50.0Hz; fclk 74.3MHz 1125(1080)/60p; fH 67.5kHz; fV 60.0Hz; fclk 148.5MHz 1125(1080)/50p; fH 56.3kHz; fV 50.0Hz; fclk 148.5MHz 640x480(VGA60); fH 31.5kHz; fV 59.9Hz; fclk 25.2MHz 800x600(SVGA56): fH 35.2kHz; fV 56.3Hz; fclk 36.0Mhz 800x600(SVGA60): fH 37.9kHz; fV 60.3Hz; fclk 40.0MHz 1024x768(XGA60): fH 48.4KHz; fV 60.0Hz; fclk 65.0MHz 1280x1024(SXGA60): fH 64.0kHz; fV 60.0Hz; fclk 108.0MHz 1280x720/50: fH 37.1kHz; fV 49.8Hz; fclk 60.5MHz 1280x720/60: fH 44.8kHz; fV 59.9Hz; fclk 74.5MHz 1280x768/50: fH 39.6kHz; fV 49.9Hz; fclk 65.3MHz 1280x768/60: fH 47.8kHz; fV 59.9Hz; fclk 79.5MHz 1280x800/50: fH 41.3kHz; fV 50.0Hz; fclk 68.0MHz 1280x800/60: fH 49.7kHz; fV 59.8Hz; fclk 83.5MHz 1600x900/50: fH 46.4kHz; fV 49.9Hz; fclk 96.5MHz 1600x900/60: fH 56.0kHz; fV 59.9Hz; fclk 118.3MHz
Optical Axis Shift	Vertical: Fixed at 33% (1:2)
Keystone Correction Range	Vertical: Max. ±40°, Horizontal: Max. ±40° (Max. values in each direction only) With corner keystone function (Correction within above range)
Installation	Front/Rear (Vertical flip display can be turned on or off using "Vertical Flip")
Terminals \| HDMI In	HDMI 19-pin x1, Compatible with HDCP, Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Terminals \| Audio Out	M3 x 1 (monitor out, stereo) 0-2.0 Vrms, variable, output impedance: 2.2 kilohms or less
Terminals \| LAN	RJ-45 x 1 for network connection 10Base-T/100Base-TX, PJLink™
Terminals \| DC Out	USB Type A x 1, for power supply (DC5 V, max 900 mA)
Wireless LAN \| Compliance \| PT-JX200HBU/JX200HBW \| Mirroring Mode	IEEEE802.11b/g/n:2.412GHz-2.462GHz IEEE802.11a/n:5.180GHz-5.240GHz, 5.745GHz-5.805GHz
Wireless LAN \| Compliance \| PT-JX200HBU/JX200HBW \| M-Direct Mode	IEEEE802.11b/g/n:2.412GHz-2.472GHz IEEE802.11a/n:5.180GHz-5.240GHz, 5.745GHz-5.825GHz
Wireless LAN \| Compliance \| PT-JX200HBU/JX200HBW \| User Mode	IEEEE802.11b/g/n:2.412GHz-2.472GHz IEEE802.11a/n: 5.180GHz-5.240GHz, 5.260GHz-5.320GHz 5.500GHz-5.700GHz(except 5.600GHz-5.650GHz) 5.745GHz-5.825GHz
Wireless LAN \| Compliance \| PT-JX200GBE/JX200GWE/JX200GBD/JX200GWD \| Mirroring Mode	IEEEE802.11b/g/n:2.412GHz-2.462GHz IEEE802.11a/n:5.18GHz-5.240GHz
Wireless LAN \| M-Direct/User Mode Mode I	IEEEE802.11b/n/g:1-13 channel IEEE802.11a/n:36/40/44/48 channel
Wireless LAN \| Wireless Channels Used \| PT-JX200HBU/JX200HBW \| Mirroring Mode	IEEEE802.11b/n/g:1-11 channel IEEE802.11a/n:36/40/44/48/149/153/157/161 channel
Wireless LAN \| Wireless Channels Used \| PT-JX200HBU/JX200HBW \| M-Direct Mode	IEEEE802.11b/n/g:1-11 channel IEEE802.11a/n:36/40/44/48/149/153/157/161/165 channel
Wireless LAN \| Wireless Channels Used \| PT-JX200HBU/JX200HBW \| User Mode	IEEEE802.11b/n/g:1-11 channel(Active scanning) IEEE802.11a/n: 36/40/44/48 channel(Active scanning) 52/56/60/64 channel(Passive scanning) 100/104/108/112/116/132/136/140 channel(Passive scanning) IEEE802.11a/n:149/153/157/161/165 channel(Active scanning)
Wireless LAN \| Wireless Channels Used \| PT-JX200GBE/JX200GWE/JX200GBD/JX200GWD \| Mirroring Mode	IEEEE802.11b/n/g:1-11 channel IEEE802.11a/n:36/40/44/48 channel
Wireless LAN \| Transmission Distance	Approx. 30 m (However, varies depending on the operating environment
Card Slot	SD card slot x 1 (SDHC memory card compatible) Operation checked for Panasonic SD memory cards up to 2 GB capacity and Panasonic SDHC memory cards up to 32 GB capacity
Cabinet Materials	Molded plastic
Dimensions \| Projection Unit (ø x L)	ø170 x 278.8 mm (6-11/16 x 10-31/32 inches)
Dimensions \| Power Unit (L x H x D)	PT-JX200HBU/JX200HBW 464.5 x 69.5 x 84 mm (18-9/32 x 2-3/4 x 3-5/16 inches) PT-JX200GBE/JX200GWE/JX200GBD/JX200GWD 443.6 x78.3 x 84 mm (17-15/32 x 3-3/32 x 3-5/16 inches) (without adaptor) 471-491 x 83.4 x 84 mm (18-17/32 - 19-11/32 x 3-9/32 x 3-5/16 inches) (with adaptor)
Weight	Approx. 4.5Kg (9.9lbs)
Operation Noise	33 dB (Light source: in Normal mode) 30 dB (Light source: in ECO mode)
Operating Environment \| Operating Temperature*2	0-40°C (32-104°F) (Less than 1,000m (3,281 ft) above sea level) 0-35°C (32-95°F) (Less than 1,000m (3,281 ft) to 2,700m (8,858 ft) above sea level)
Operating Environment \| Operating Humidity	10%-80% (no condensation)
Note	1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118 : 2012international standards. 2 Limits the luminance when used in locations from 0m to 1,000m (0ft to 3,281ft) above sea level at ambient temperatures of 35°C (95°F) or higher, or from 1,000m to 2,700m (3,281ft to 8,858ft) above sea level at ambient temperatures of 30°C (86°F) or higher.
Brightness	2000 lumens
Resolution	XGA 1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.)
Technology	1-Chip DLP Laser
