Colour accurate images. Laser light source. 1.09-1.77:1 lens with Vertical/Horizontal lens shift, 6200 lumens, WUXGA.

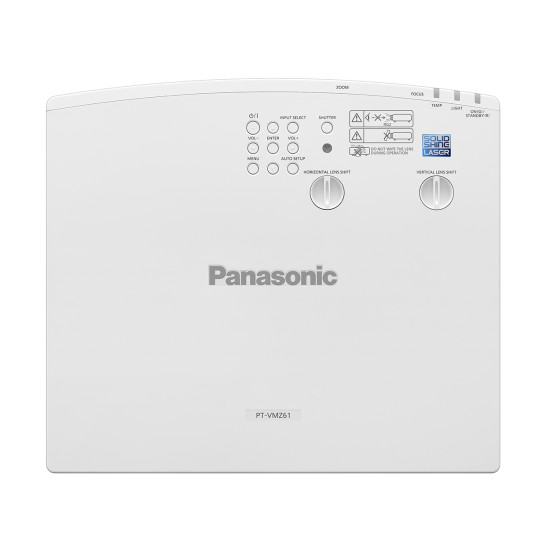

Compact and lightweight LCD laser projector PT-VMZ61
Designed for education and corporate environments and achieving a large image even in a small space, LCD laser, 6 200 lumens, WUXGA projector
Key Features
- Compact and lightweight LCD laser projector
- Clear Images That Are Easy to See in Bright Rooms
- Installation Flexibility Adapts Projection to Any Space
- Smooth and Effortless Collaboration
The world’s smallest and lightest*1 compact design with long and reliable operation
The VMZ series uses Panasonic’s unique cooling technology, making it the world’s smallest and lightest*1 laser projector range in its lumens category. With a weight of less than 7.2kg (15.87 lbs), the compact body will fit into any room.
The laser light-source sustains bright images for 20,000 hours, eliminating the replacement hassles and maintenance costs associated with conventional lamps.
1.6 x zoom lens for short throw-distances and enables creation of big images in small places
The 1.6x zoom lens fully supports short throw-distances (throw ratio: 1.09-1.77:1), best for close-range projection. The VMZ series also achieves more installation flexibility with the Vertical and Horizontal lens-shift, particularly useful in limited spaces.
Panasonic’s original DIGITAL LINK connection, based on HDBase-T™, enables transmission of video, audio, and control signals through a single LAN cable for distances of up to 150m (492 ft.) for full HD video and 50m (164 ft.) for 4K video, making installation simple and cost-effective with consistently high quality.
Versatile functions for smooth operation in classes or conferences
Compared to lamps, the laser light-source cuts the time taken to display images after switching on the projector. Quick Start/Quick Off enables you to project images in just one second from standby, so presentations can start immediately. Panasonic has also developed an original Wireless Projector app that allows users to share documents or images from their own devices no matter where they are sitting, without cable hassle. Other features include a USB Memory Viewer function, which displays stored on USB memory devices without needing a PC, and a built-in 10W speaker.
Additional features
Supports 4K signal input for future-ready integration
Specification
|
PT-VMZ61 |
---|---|
PROJECTOR TYPE | LCD projector |
LCD Panel | |
Panel size |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
Display System |
Transparent LCD panel (x 3, R/G/B) |
Drive Method | Active matrix |
pixels |
2,304,000 (1920 x 1200) pixels |
Light source |
Laser diodes |
Light output*1*2 |
6,200 lm |
Time until light output declines to 50 %*3 |
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
Resolution |
WUXGA (1920 x 1200 pixels) |
Contrast ratio*1 |
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
Screen size (diagonal) |
0.76–7.62 m (30–300 in), 16:10 aspect ratio |
Center-to-corner zone ratio*1 | 85 % |
Lens |
1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm |
LENS SHIFT (From the origin point of the lens mounter) |
|
Vertical |
+44 %, 0 % (manual) |
Horizontal |
+20 %, -20 % (manual) |
Keystone correction range | Vertical: ±25 °, Horizontal: ±35 ° |
Installation |
Ceiling/floor, front/rear, free 360-degree installation |
TERMINALS | |
HDMI IN |
HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p*4 signal input), CEC supported |
Computer 1 In |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
Computer 2 In |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
AUDIO 1/2 IN |
M3 stereo mini-jack x 2 |
Variable Audio Out |
M3 stereo mini-jack x 1 |
Serial In |
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
DIGITAL LINK/LAN |
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) |
LAN |
RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2] |
USB(VIEWER/WIRELESS/DC OUT) |
USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50 Series, power supply (DC 5 V, maximum 2 A*5) |
POWER SUPPLY | AC 100 V–240 V, 50/60 HZ |
Max. Power consumption |
370 W |
Cabinet materials |
Molded plastic |
Filter*6 | Included (Estimated maintenance time: approx. 20,000 hours) |
Operation noise*1 |
36 dB (NORMAL/ECO), 26 dB (QUIET) |
Dimensions |
399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts) |
Weight with supplied lens*7 |
Approx. 6.9 kg (15.21 lbs) |
Operating environment |
Operating temperature: 0–45 °C (32–113 °F)*8*9, Operating humidity: 20–80 % (no condensation) |
Applicable software |
Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®*10, Wireless Projector App for iOS/Android™*11 |
- Stock: Pre-Order
- Model: Panasonic PT-VMZ61EJ White
- SKU: PT-VMZ61EJ-White
